AudioFuse Studio Rev2

Premium desktop audio interface

AudioFuse Studio Rev2

It’s time your music had an upgrade

Transform your musical ideas into world-class recordings and connect every aspect of your studio to your computer with the ultimate desktop audio interface. AudioFuse Studio gives you world-class preamps, incredible connectivity, a versatile feature set, hands on control and a host of clever design features.

  • 8x ANALOG INPUTS + DIGITAL I/O
  • 4x OPTIMIZED DiscretePRO® PREAMPS
  • UPGRADED BLUETOOTH® RECEIVER
  • 8-CHANNEL ADAT I/O + FLEXIBLE ROUTING
  • CREATIVE FX BUNDLE INCLUDED

USB-C Audio Interface

-129dBu

Equivalent Input Noise (EIN)

High fidelity dynamic, no distortion

119dBu

Dynamic Range

The quality you deserve

When your diary is filling up with sessions and your clients need you to deliver, you need equipment you can trust. AudioFuse Studio ticks all the boxes.

Superb preamps, rock-solid performance, low latency and dozens of incredibly useful features, including a built-in phono preamp for vinyl sampling, Bluetooth streaming to your monitors or a channel in your DAW, versatile USB-C, ADAT, MIDI and Word Clock connectivity, and a robust build.

AudioFuse Studio Rev2 features four optimized DiscretePRO® preamps for even lower THD, alongside a pristine analog signal path that reveals every nuance of your audio.

The super-low Equivalent Input Noise (EIN) lets you capture every subtle detail, while the huge 78dB input gain gives you enough gain to drive even the quietest ribbon mic. Everything is also capture with a practically perfect flat frequency response, too.

Enhancing the way you actually make music

Fed up of using studio equipment that forces you down a certain creative path? We were too, that’s why we made AudioFuse Studio.

From bedroom production, to mobile sound recording, to tracking a live band at full volume, you'll enjoy perfectly transparent AD/DA conversion, practically zero-noise preamps, loads of gain to make even the quietest mics shine, and a silky-smooth audiophile listening experience.

Reliable USB-C connectivity ensures low-latency performance for even the most demanding sessions, while the upgraded Bluetooth® receiver supports high-quality AAC, aptXTM HD and aptXTM Low Latency codecs for streaming and recording audio directly from your phone or tablet.

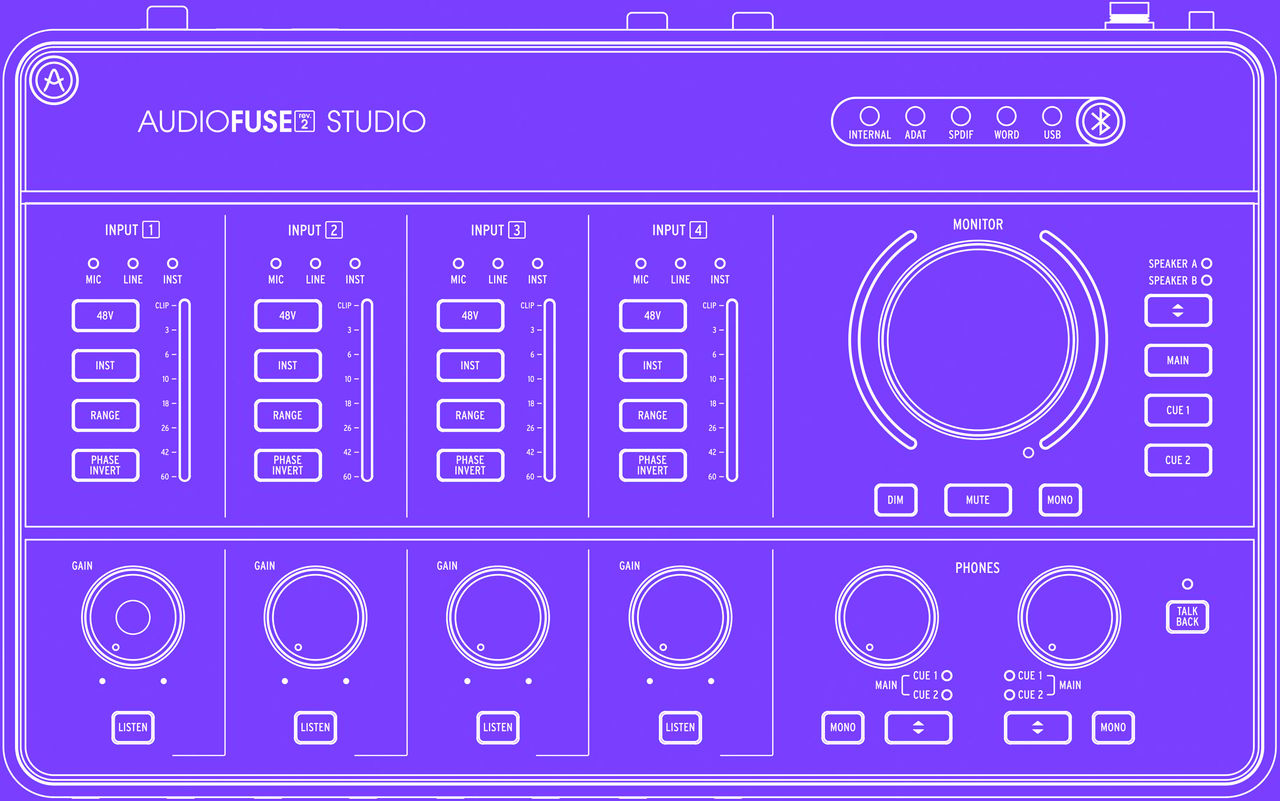

Overview

AudioFuse Studio

1

Four Preamps with hands-on control

Premium Discrete Pro© Preamps with separated Mic/ Instruments/Line circuits give you the best audio quality possible at the input stage.

2

Bluetooth audio direct connection

Use AudioFuse Studio to listen or record wireless audio stream (even without the need for computer in standalone modeIncludes the best audio codec for the highest quality connection : aptX and AAC

3

Monitoring section

A full studio workflow at your fingertips : the most complete monitoring section for this type of interface : Direct access to Mono, Mute, Dim functions

4

Speaker selection and Source selection

Switch between the 2 set of speakers and select between 3 audio sources or mixers for instant A/B control

5

Two independent phones control

2 fully independent phones output, each with source selection, mono switch, 6.35 and 3.5mm TRS

6

Talkback

Press this button to use talkback feature with built-in microphone

7

Listen PFL control

Activate PFL (Pre Fader Listen) for each analog input directly on the interface.

8

Comprehensive clock selection display

Check at a glance on which clock the AudioFuse Studio is synchronized

9

Arturia button

Quick-access button opens up directly the AudioFuse Control Center software . Long press also allows for power up or shutting down the unit.

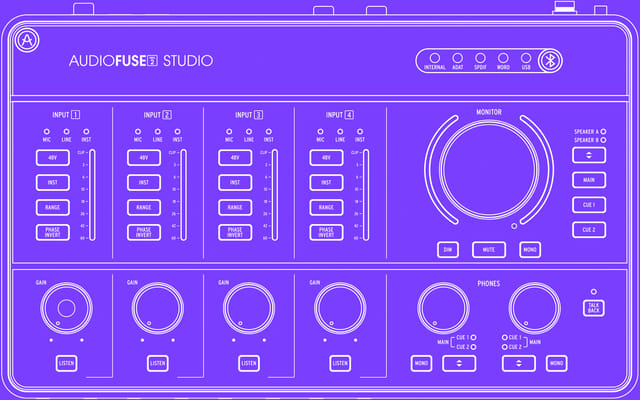

Overview

AudioFuse Studio

1

Four Preamps with hands-on control

Premium Discrete Pro© Preamps with separated Mic/ Instruments/Line circuits give you the best audio quality possible at the input stage.

2

Bluetooth audio direct connection

Use AudioFuse Studio to listen or record wireless audio stream (even without the need for computer in standalone modeIncludes the best audio codec for the highest quality connection : aptX and AAC

3

Monitoring section

A full studio workflow at your fingertips : the most complete monitoring section for this type of interface : Direct access to Mono, Mute, Dim functions

4

Speaker selection and Source selection

Switch between the 2 set of speakers and select between 3 audio sources or mixers for instant A/B control

5

Two independent phones control

2 fully independent phones output, each with source selection, mono switch, 6.35 and 3.5mm TRS

6

Talkback

Press this button to use talkback feature with built-in microphone

7

Listen PFL control

Activate PFL (Pre Fader Listen) for each analog input directly on the interface.

8

Comprehensive clock selection display

Check at a glance on which clock the AudioFuse Studio is synchronized

9

Arturia button

Quick-access button opens up directly the AudioFuse Control Center software . Long press also allows for power up or shutting down the unit.

Overview

AudioFuse Studio

1

Four Preamps with hands-on control

Premium Discrete Pro© Preamps with separated Mic/ Instruments/Line circuits give you the best audio quality possible at the input stage.

2

Bluetooth audio direct connection

Use AudioFuse Studio to listen or record wireless audio stream (even without the need for computer in standalone modeIncludes the best audio codec for the highest quality connection : aptX and AAC

3

Monitoring section

A full studio workflow at your fingertips : the most complete monitoring section for this type of interface : Direct access to Mono, Mute, Dim functions

4

Speaker selection and Source selection

Switch between the 2 set of speakers and select between 3 audio sources or mixers for instant A/B control

5

Two independent phones control

2 fully independent phones output, each with source selection, mono switch, 6.35 and 3.5mm TRS

6

Talkback

Press this button to use talkback feature with built-in microphone

7

Listen PFL control

Activate PFL (Pre Fader Listen) for each analog input directly on the interface.

8

Comprehensive clock selection display

Check at a glance on which clock the AudioFuse Studio is synchronized

9

Arturia button

Quick-access button opens up directly the AudioFuse Control Center software . Long press also allows for power up or shutting down the unit.

1

2

3

4

5

6

7

8

9

Artist
Corner

Emre Ramazanoglu

Engineer / Mixing / Noel Gallagher, Carly Rae Jepsen, Sia

"You can do pretty much anything you need, from basic drum kit recording to piano, guitars, multiple singers ... This is a really good unit, really hands-on"

Josiah Bell

Producer / Musician / Birds of Prey, Jaden Smith

"I’m out of the studio a lot of the time so I’m always looking for something that’s compact and crazy dope where I can hook my record player in. With AudioFuse Studio, this Bluetooth thing is life-changing for producers all over the place. "

Alan Parsons

Audio engineer / songwriter / producer

"The AudioFuse Studio worked great for a virtual Masterclass where we had 3 cameras and 3 mic sources and the stereo program which had to be switched according to what was going on. It was invaluable."

You have the power

AudioFuse Studio doesn’t just sound amazing, it lets you do more with the things you already have.

Connect a turntable

Connect your turntable and use the integrated RIAA phono preamp to listen to vinyl, record it into your DAW, or sample it in your productions.

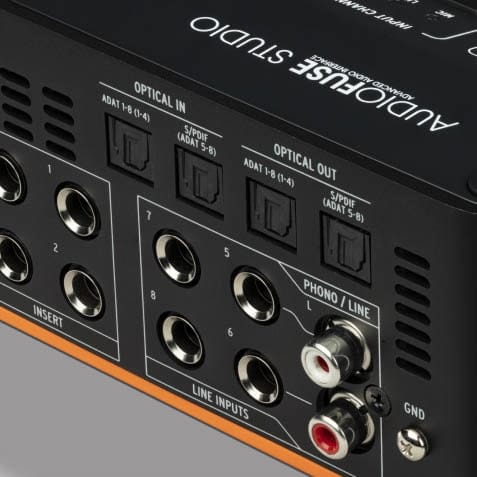

Flexible Aux and ADAT routing

Route a wider selection of sources to the Aux and ADAT outputs, giving you greater freedom when configuring recording, monitoring and hardware workflows.

Dedicated software control

Enjoy immediate hands-on control, with full access to routing, monitoring, clock settings and more in AudioFuse Control Center.

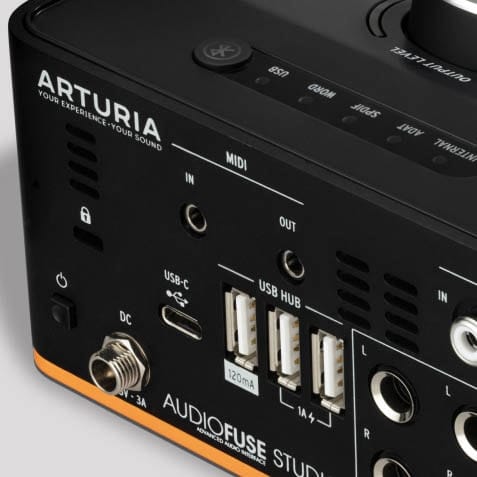

Integrated USB 2 hub

Connect controllers, storage devices and other USB accessories through the integrated three-port hub, freeing up connections on your computer.

JOSIAH BELL

Life as life as music

Gifting the world with his joyful, melancholic beats, Josiah Bell is a singer/songwriter and producer working with young talent, including Jaden Smith, and appears on various film scores, such as Birds of Prey.

Premium FX
included

All AudioFuse interfaces come complete with the AudioFuse Creative Suite, an ever-evolving selection of creative plugins curated from our award-winning FX Collection.

Color the pristine inputs of AudioFuse Studio with vintage studio tools, expand your sonic horizons with contemporary effects, and explore every chapter of synthesis with a wealth of inspiring presets - all in one professional bundle.

Pre 1973

Inspired by the hugely influential British studio sound, the Arturia Pre 1973 is the key to getting that harmonically exciting, solid-state 70s tone.

Discover Pre 1973 →

Pre V76

The key to getting that “White Album” sound, these reinvented German engineered, tube-driven broadcast preamps were beloved by Abbey Road.

Discover Pre V76 →

Filter Mini

Dr Robert Moog’s iconic, smooth ladder filter, accurately recreated and updated with an LFO, envelope follower, and a step sequencer.

Discover Filter Mini →

Chorus JUN-6

Chorus JUN-6 resurrects a classic synth effect, with 3 simple modes offering glorious stereo width, subtle analog movement, and perfectly-emulated BBD warmth.

Discover Chorus JUN-6 →

Comp FET-76

Modelled after the most sought-after compressor ever made, the Class A FET sound our 1176 software recreation seems to make everything sound better.

Discover Comp FET-76 →

Delay TAPE-201

The Arturia Delay TAPE-201 gives you everything you love about the sound of vintage hardware tape delays, but with the reliability and versatility of software.

Discover Delay TAPE-201 →

Rev PLATE-140

The silky-smooth, resonant tone of vintage plate reverbs have shaped the sound of many iconic vocal performance, given the drums of best-selling tracks their air, and brought whole mixes together with bright, sweet overtones.

Discover Rev PLATE-140 →

Analog Lab Intro

A superb software instrument containing hundreds of amazing presets taken from Arturia’s award-winning V Collection. Analog synths, pianos, organs, and more await.

Discover Analog Lab Intro →

Phaser BI-TRON

Phaser BI-TRON is a double-barrelled modulation powerhouse that lets you weave your own kinetic sound with advanced routing, dual phaser circuits, and beautiful analog character.

Discover Phaser BI-TRON →

Pre TridA

Music industry gold-dust. Get that ultra-rare Soho preamp sound and musical EQ that added flavor to countless best-selling hits for over half a century.

Discover Pre TridA →

Comp DIODE-609

A re-engineered software emulation of the legendary Neve® 33609 Diode Compressor and Limiter, famed for its warm, smooth, and versatile stereo response. For mixing and mastering alike, reinforce your sound with the spirit of analog dynamics.

Discover Comp DIODE-609 →

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision and bring all your gear together to create the music you always wanted to.

High performance recallable preamps

The superb inputs of our interfaces give you the most vibrant, accurate sound around, with practically zero noise even at max gain, and enormous dynamic range. Be true to your music.

Analog signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Press
Clippings

Future Music ES

On AudioFuse Studio Rev2

"With its flawless conversion and extensive connectivity, AudioFuse Studio REV2 is the perfect ‘all-in-one’ hub for any professional studio."

Future Music

On AudioFuse Studio Rev2

"Useful features, flexible signal routing and quality preamps. One of the most future-proof we've seen in a while with options for all your studio needs; even ones you didn't think you had."

Gallery

01
02
03
04
05
06
07
08
aw1

Main Features

Four optimized DiscretePRO® preamps

  • Four analog insert points
  • Individual performance certificate included

8 analog inputs

  • Four mic/line/instrument inputs
  • Four additional line inputs
  • Inputs 5–6 switchable to the integrated phono/RIAA preamp

Flexible outputs and monitoring

  • Four line outputs and two Aux/reamping outputs
  • Speaker A/B switching, with support for speakers with digital input
  • Two independently controlled headphone outputs
  • Integrated talkback and ultra-low-latency direct monitoring

ADAT and digital synchronization

  • 8-channel ADAT input and output at up to 96 kHz
  • S/PDIF input/output or Word Clock input/output/thru
  • Updated clocking system for refined stability

Flexible routing and software control

  • Expanded source options for Aux and ADAT outputs
  • Comprehensive routing and configuration through AudioFuse Control Center

Bluetooth® streaming

  • Supports AAC, aptX™ as well as aptX™ HD and aptX™ Low Latency for AudioFuse Studio rev.2
  • Stream, monitor and record audio directly from compatible devices

USB-C, MIDI and USB hub

  • Low-latency USB-C connection
  • MIDI input and output
  • Integrated three-port USB 2 hub

AudioFuse Creative Suite included

  • 11 software titles, including Analog Lab Intro and the newly added Comp DIODE-609

Studio-ready construction

  • Robust metal desktop chassis
  • 24-bit AD/DA conversion at up to 192 kHz

Size & weight

  • Size (mm): 73 x 265 x 160 mm
  • Size (in): 2.87 x 10.43 x 6.30 in
  • Weight (kg): 1.6 kg
  • Weight (lb): 3.53 lb
